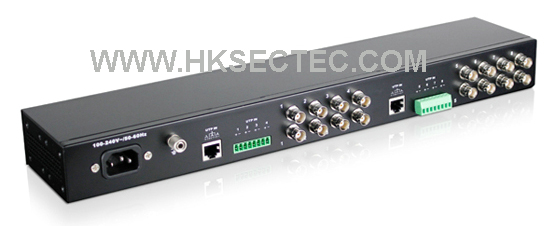

ST-2108R is a 8ch active video receiver. It features long distance
transmission , good transmission effect, strong anti-interference.
|
|
| |
|
Description |
|
ST-2108R is a multi-channel video receiver. Use CAT 5/5e/6 SECTEC cable as transmission medium,
can realize realtime transmit 8 channel color or PAL、NTSC、SECAM composite video signal. In practical
project ,working with SECTEC passive transceiver or SECTEC active transmitter. It features long distance
transmission , good transmission effect, strong anti-interference. Widely used in security, teaching
industry and other complex system environment.
|
|
Features |
|
·Power:90~240VAC;
·Transmission effect: plug&play,real-time transmit CCTV video signal, video is clear and stable;
·Distance:900m,working with passive transceiver;1200m,working with active transmitter;
·Properties: single channel receiver, dual output, DIP adjust distance;
·Safety: anti-interference, super lighting protection, wide voltage AC/DC input;
·Appearance design: video and power indicator ,can install to 19 inch 1U cabinet.
|
|
Specification |
|
Function |
Channels |
Input:8ch Output:16ch |
|
Transmition Distance |
1200m with active transmiter |
|
Power Properties Video Properties |
Adaptive Voltage Arrange |
100-240V AC(50/60Hz) |
|
Power Consumption |
<5W |
|
Over-Voltage Protection |
DC 40V |
|
Surge&Transient Protection |
>2KV/1KA Per:IEC61000-4-5 |
|
Video Connector |
BNC-F |
|
UTP Cable Connector |
8pin Green Terminal Block,RJ-45 |
|
Compatible With |
PAL,NTSC,SECAM etc. |
|
Signal Transmission Band |
0-6MHz |
|
Interference Rejection |
>75db |
|
Video Connector Protection |
2KV(Common Mode) Per:IEC61000-4-5 |
|
UTP Cable Conenctor Protection |
2KV(Different Mode)4KV(Common Mode) Per:IEC61000-4-5 |
|
Adjustment |
Adjusting Switch |
4 Blue Switches Per Channel |
|
Adjusting Method |
Please refer to "Adjustment Diagram" |
|
LED Indicator |
Power LED |
1 Red |
|
Signal LED |
8 yellow |
|
Protection |
ESD Protection |
Contact Discharge 6000V Air Discharge:8000V Per:IE61000-4-2 |
|
Reliability |
MTBF |
>5000H |
|
Physical Properties |
Size(LWH) |
430*95*44.5mm |
|
Outer Shell |
Iron Metal |
|
Color |
Black |
|
N.W. |
2.2kg |
|
Environment |
Operation Temperature |
0-50°C |
|
Storage Temperature |
-20-80°C |
|
Relative Humidity |
0-95%(non-condensing) | | |
| |
|
|
|
|
