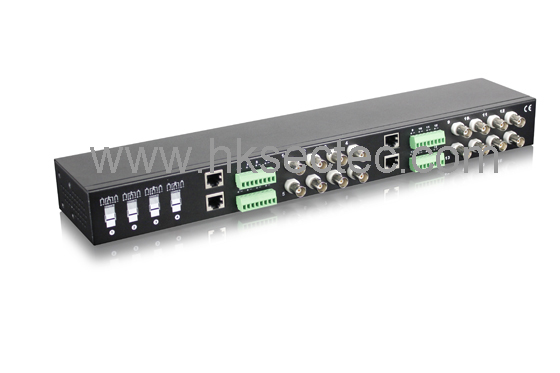

ST-2116 is passive(non-amplified) video balun/transceiver that allows transmission of real-time
and high performance color or monochrome (B/W) video over cable. ST-2116 can be
used as either transmitter or receiver,it receives 16 channel video signals and provides 16 channels
output without power supply. In standard 1U structure ST-116P is rack-mountable and excellent
for multi-point surveillance.
|
|
·No power required.
· Transmission distance up to 300m working with passive transceivers.
· Transmission distance up to 1500m working with active receivers.
· RJ-45 or green terminal block to be choosed from for UTP cable connection.
· Compatible with worldwide formats including PAL, NTSC, SECAM.
· Built-in surge&transient protection.
· Super interference rejection.
· Standard 1U structure.
Specification
|
Items |
ST-2116 |
|
Video
Transmitting properties |
Compatible with |
All Baseband Signals,
including PAL, NTSC, SECAM |
|
Transmitting Band |
0-6MHz |
|
Transmission Distance(up to)
Over UTP Cable |
300m(working with passive baluns)
1500m(working with active baluns) |
|
Interference Rejection |
>60db |
|
Connection
properties |
Video Connectors |
16 BNC-F
Impedance: 75 ohms |
|
SECTEC Cable Connectors |
4 RJ-45 jack or Green Terminal Block
Impedance: 50 ohms |
|
Protections |
Video Input Protection (as transmitter) |
2KV(common mode),10/700us
Per:IEC61000-4-5 |
|
Video Output Protection (as transmitter) |
2KV(different mode),10/700us
Per:IEC61000-4-5 |
|
Stability |
MTBF |
>50,000h |
|
Physical
Properties |
Dim (LWH) |
430*100*44.5mm(1U design) |
|
Shell |
Metal |
|
Color |
Black |
|
N.W. |
1250g |
|
Environmental |
Operating Temperature |
0~55°C |
|
Humidity(non-condensing) |
0~95% |
|
Storage Temperature |
-20°C ~70°C |
|
Casing |
Gross Weight |
1583.6g |
|
Casing Volume(LWH) |
530*150*90mm | | |
